0.35T3.5M Telescopic Boom Yacht Ues Marine Crane for Cargo Lifting
OUCO manufactures small service cranes in different boom lengths and depending on the crane’s application, we offer certification by all major classification societies and a broad set of available accessories. They are designed and manufactured in conformity with the current Marine Rules and they can be customized on request.
The KB series, knuckle jib box boom pedestal crane, are a reliable for general cargo handling service and offshore use. On board various ship types and offshore units. Tailor made to your required specifications in different boom length and lifting capacities from 10mt to 2000mt for different sea state working conditions. All KB series cranes can be equipped with different accessories and class certified by all leading classification societies.
Features and Advantages
1.Simple design simplifies the maintenance;
2.Compliance with the most demanding safety rules and regulations;
3.Overload protection;
4.Reliable long service life guaranteed through the use of high quality reputable components, extensive endurance testing and easy future upgrades.
Product Information
| SWL | 0.35T 3.5M |
| Max. Working radius | 3.5m |
| Min. Working radius | 1.5m |
| Hoisting speed | 0~15m/min |
| Hoisting height | 10m |
| Slewing speed | ~0.8r/min |
| Slewing angle | 360° |
| Luffing time | ~40s |
| Extension time | ~25s |
| Luffing angle | 0~75º |
| Design temperature | -20º~+45º |
| Working condition | TRIM ≤2° |
| HEEL ≤5° |
| Power | 4.5kw |
| Classification | ABS/BV/CCS/RMRS |
| Speed | 1780r/min |
| Insukate class | F |
| Power resource | AC440V/60HZ |
| Protect class | IP44 |
| Working type | S1 |
GA Drawing

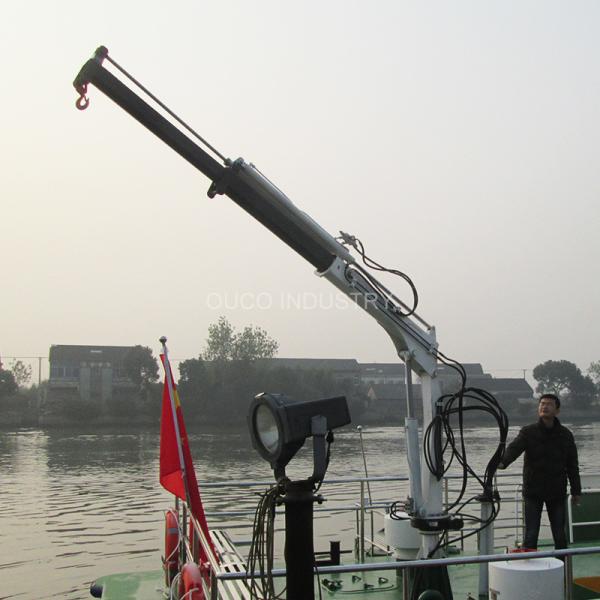

Product Picture
Production Process
Company Profile
Company Information
OUCO Industry, was established in February 1984, covers an area of 48,000 square meters, construction area is 35,000 square meters. OUCO headquartered in crane hometown of Jiangsu Province where representing most advanced machinery manufacturing level in China. OUCO has more than 150 employees, 20 were technical staff. Among that has five senior titles, 10 mid-level titles, and a total of 50 welder (who has got CCS, ABS and other main institutions’ certification). It also has professional organization certificated flaw detection staff, the quality system audit staff, and inspection personnel, etc.
FAQ
1.Q: What's the working radius of your crane?
A: From 1m to 100m, we can also design and manufacture cranes according to your requirements.
2.Q: Which crane type should I choose?
A: We have foldable boom, knuckle boom, telescopic boom, stiff boom, etc.
3.Q: Is this crane explosion-proof?
A: Sure, we can equip any extra function based on your requirement.
4.Q: Does your crane have safety devices?
A: Of course, we have all cut off limits and alarms for safety reasons.
5.Q: How can I install the crane to my vessel?
A: We can send our service engineers to the vessel site for guiding or ship the crane in whole pieces.
